Laser Measuring Lidar Mirror Infrared Quartz Convex Concave Lens
Basic Info.
| Certification | ISO9001 | Customized | Customized |
| Coating | HMC | Diameter | 0.5-100mm |
| Radius | R0.2mm-∞ | Center Thickness Tolerance | ±0.005 |
| Diameter Tolerance | ±0.005 | Focal Length Tolerance | ±1% |
| Surface Accuracy | λ/5@632.8nm | Deviation | 20" |
| Surface Quality | Better Than10/5 | Application Area | Medical Endoscope, Industrial Endoscope, Industria |
| Sample | Provide | Automatic Edge Grinding Machine | Korea |
| Automatic Precision Grinding Machine | Korea | Automatic Polishing Machine | Korea, Taiwan, Japan |
| Trademark | Custom logo | Specification | customized |
| Origin | Jiangsu China | HS Code | 9002909090 |
Basic parameters
| materials | BK7,quartz,or other optical glass |
| diameter | 0.5-100mm |
| radius | R0.2mm-∞ |
| Center thickness tolerance | ±0.005 |
| diameter tolerance | ±0.005 |
| focal length tolerance | ±1% |
| surface accuracy | λ/5@632.8nm |
| deviation | 20" |
| surface quality | Better than10/5 |
| coating | based on customer's needs |
| application area | Medical endoscope, industrial endoscope, industrial lens, etc. |

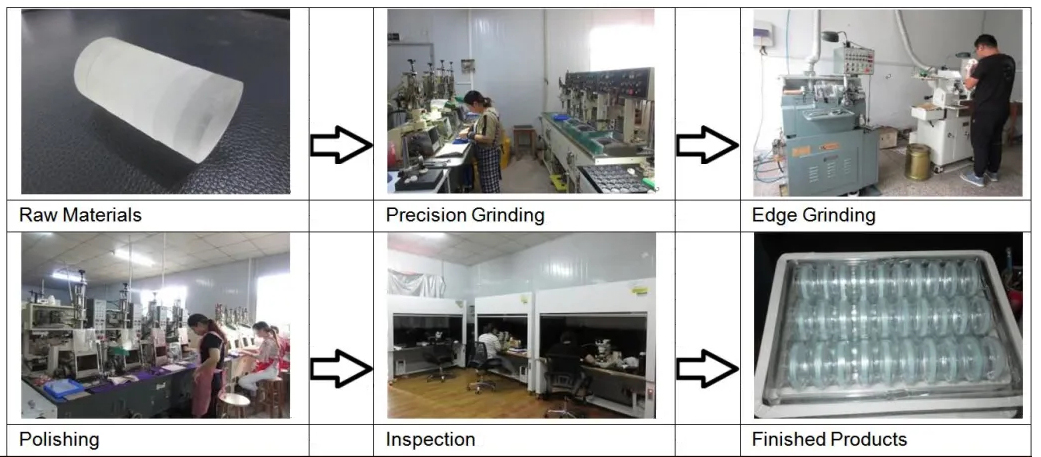

Production Process

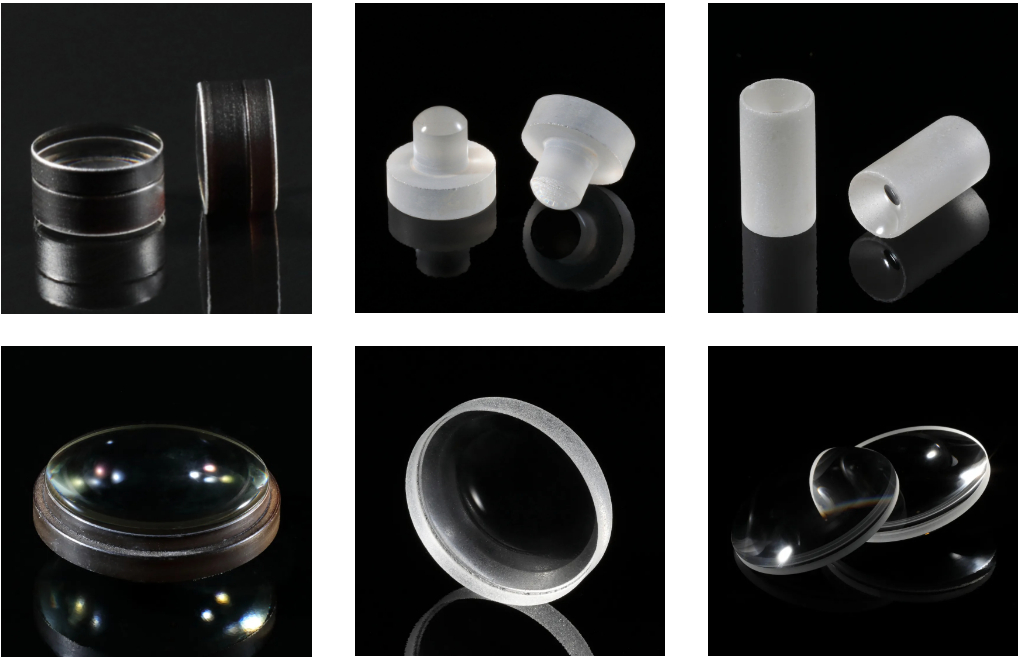

Main Products
